FN® e-novation - AIMING

FN ELITY® LITE

The FN ELITY® LITE is a compact all-in-one aiming solution designed to meet the growing need for advanced laser range finders and laser aiming devices on medium and heavy machine guns. Rail space is often limited on these weapon systems, especially when mounts or ballistic shields are fitted. The FN ELITY® LITE solves this challenge by integrating multiple functions into a single lightweight unit.

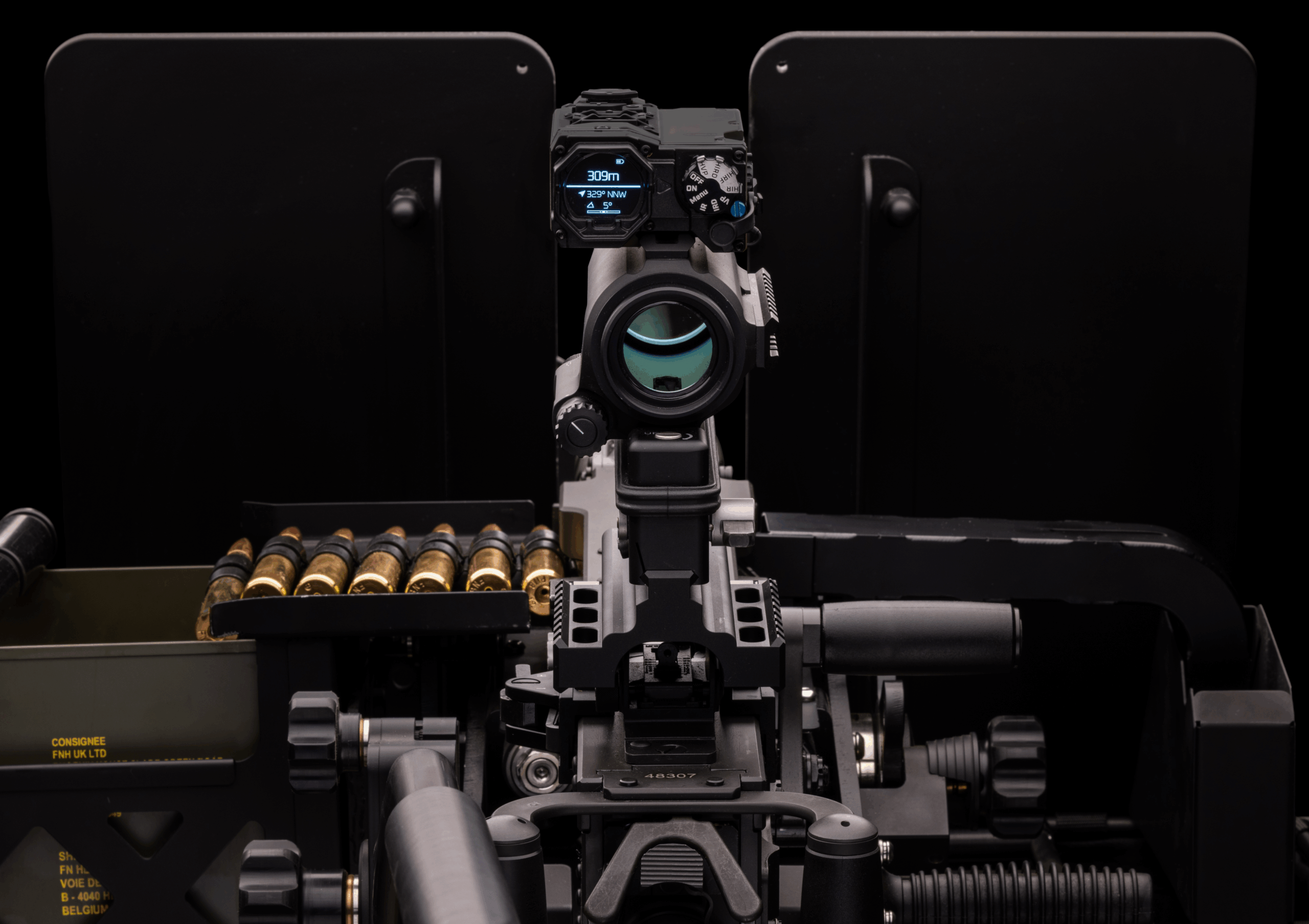

Mounted on platforms such as the .50 cal (12.7×99mm NATO) machine gun, the FN ELITY® LITE combines a laser range finder, IR laser pointer and illuminator, and a visible laser pointer. This ensures accurate engagement at extended ranges and improved situational awareness, even when firing from a moving platform against moving targets.

With its compact design, weighing only 400 g, the FN ELITY® LITE occupies minimal rail space while adding significant operational capability. Range measurements can be shared with a battle management system, and the integrated digital compass enhances navigation and targeting support.

Key benefits

  • Large NVG-compatible display for clear data reading

  • Single zeroing mechanism for simplified alignment

  • Compact all-in-one device requiring little rail space

  • High-performance laser range finder with range up to 3 km

  • Visible and IR lasers for aiming and target designation

  • Eye-safe laser mode available for training

  • Adjustable IR light with variable intensity

  • Lightweight: approx. 400 g

  • IP68 protection: fully dustproof and water-resistant

  • European design and manufacture (no ITAR restriction)

  • MIL-spec qualified for military reliability

  • Wired and wireless communication capability

Technical Overview

  • Dimensions & weight:
    • Dimensions: 123 × 76 × 44 mm
    • Weight: 400 g (0.88 lb)
  • 1.550nm laser range finder:
    • Human target (30% reflectivity): 1,750 m
    • Vehicle target (30% reflectivity): 2,200 m
  • Aiming laser pointers:
    • Visible laser pointer: Class 1 (low), Class 3B (high)
    • IR pointer/illuminator: Class 1 (low), Class 3B (high)
  • Variable infrared illuminator
    • 3–90 mrad
  • Integrated weather and movement sensors:
    • Temperature, barometric pressure, humidity, cant angle, inclinometer, digital compass
